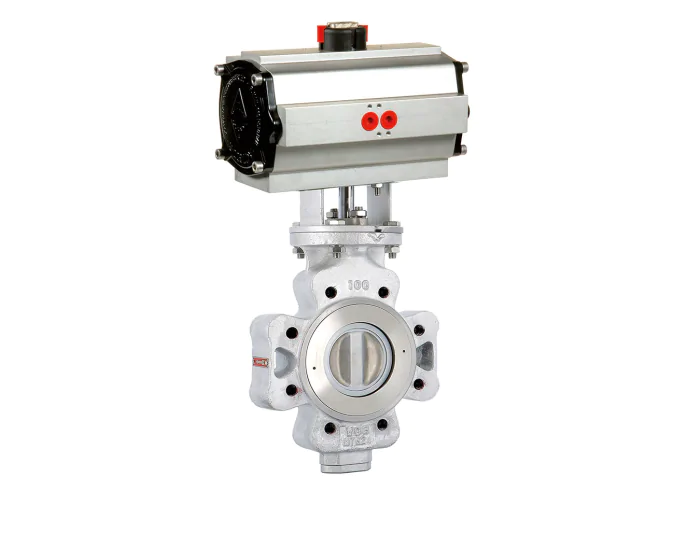

The 1117 series carbon steel double offset butterfly valve, equipped with either a spring return or double-acting ACTREG pneumatic actuator, features an A216WCB body. It is designed for mounting between PN16/25 flanges.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category I |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Double acting | 260850015101 | S1001380 |
€718.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Spring return | 260850016102 | S1001381 |
€770.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Double acting | 260851015101 | S1001382 |
€744.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Spring return | 260851016102 | S1001383 |
€795.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Double acting | 260852015102 | S1001384 |
€999.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Spring return | 260852016103 | S1001385 |
€1,050.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Double acting | 260853015102 | S1001386 |
€1,152.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Spring return | 260853016104 | S1001387 |
€1,254.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Double acting | 260854015104 | S1001388 |
€1,366.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Spring return | 260854016105 | S1001389 |
€1,479.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Double acting | 260855015105 | S1001390 |
€1,642.20
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Spring return | 260855016106 | S1001391 |
€1,774.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Double acting | 260856015105 | S1001392 |
€2,335.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Spring return | 260856016106 | S1001393 |
€2,488.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset Double acting DN250 - 10'' | 260857015106 | S1001394 |
€3,057.37
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Double offset Double acting DN300 - 12'' | 260858015106 | S1001395 |
€3,661.39
(excl. btw)
|
add to cart |
